Product

4V/4A

4A400

Control component - 4V/4A

Online

Download

Introduction

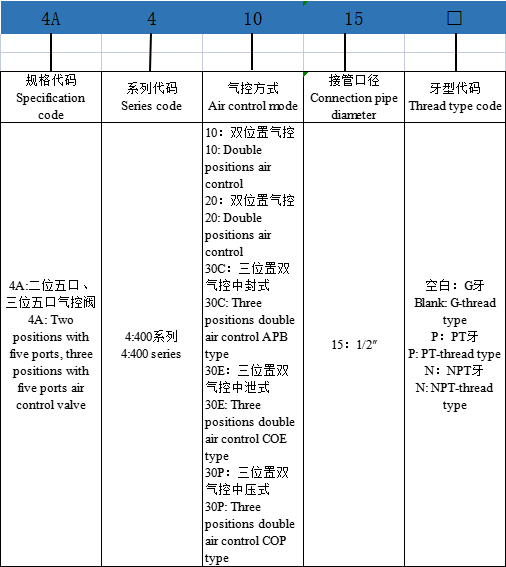

Order Code

Parameter


Model	4A410-15	4A420-15	4A430C-15	4A430E-15	4A430P-15
Working medium	Air (filtered by a filter screen over 40μm)
Action mode	Extrernal air control type
Connection pipe diameter	Air inflow = Air outflow = Air exhaust =G1/2
Effective sectional area	50mm²（Cv=2.79		30mm²（Cv=1.68）
Position number	Two positions with five ports		Three positions with five ports
Working pressure range	0.15~0.8MPa
Ensure pressure resistance	1.2MPa
Working temperature	-10~70℃
Body material	Aluminium alloy
Maximum action frequency	Five times/sec
