Product

Two-way valve

Control component - Two-way valve

Online

Download

Introduction

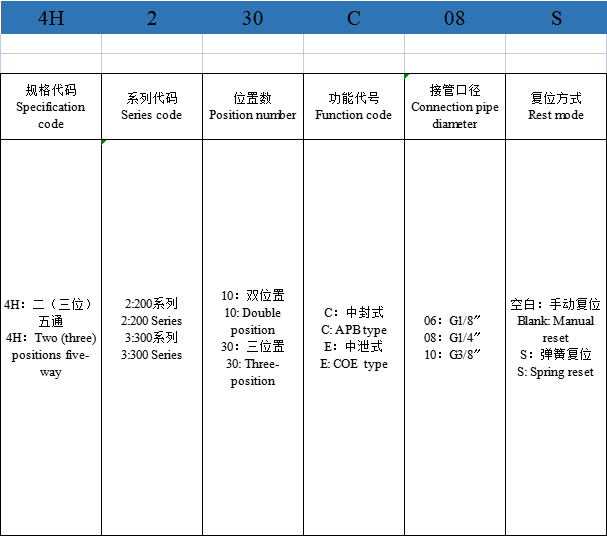

Order Code

Parameter

Model	4H210-06	4H210-08	4H230-08	4H310-08	4H310-10	4H330-10
Working medium	Air (filtered by a filter screen over 40μm)
Action mode	Direct -acting type
Connection pipe diameter	Air inflow = Air outflow = Air exhaust =G1/8"	=G1/8″ Air inflow = Air Exhaust = G1/4″ Air exhaust =G1/8"	Air inflow = Air outflow = Air exhaust =G1/4"		Air inflow = Air Exhaust = G3/8″ Air Exhaust = G1/4″
Effective sectional area	14mm²（Cv=0.78）	16mm²（Cv=0.89）	12mm²(Cv=0.67)	25mm²(Cv=1.4)	30mm²(Cv=1.68)	18mm²(Cv=1.0)
Working pressure range	0~0.8MPa
Ensure pressure resistance	1.5MPa
Working temperature	-10~70℃
