Product

Two-way valve

micro valve

Control component - Two-way valve

Online

Download

Introduction

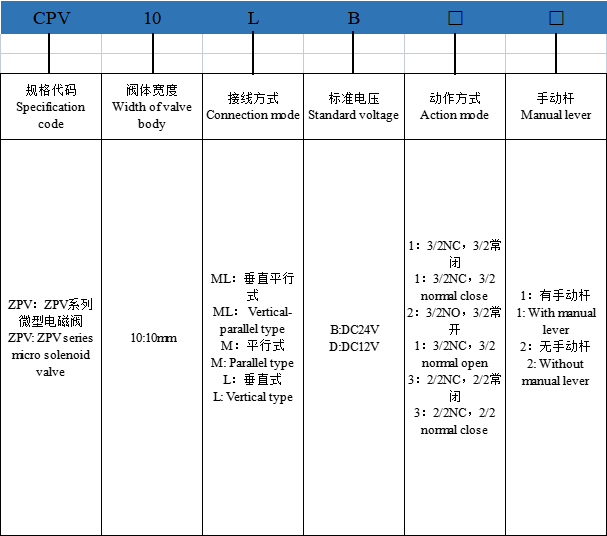

Order Code

Parameter

Working medium		Air (filtered by a filter screen over 40μm)
Action mode		Direct-acting type
Position number		Two positions with three ports
Original state		NC: Normal close NO: Normal open
Flow aperture		0.7mm
Connection pipe diameter		M3-M5 Manifold base
Working pressure range		0~0.7MPa
Working temperature		-5~50℃
Working voltage		DC12V DC24V
Protection level		IP65
Insulation grade		H
Body material		PA66
Seal material		NBR
