Control component - 3V/3A
Product features:
1. Internal pilot operated structure;
2. Sliding column structure, good sealing performance, and sensitive response;
3. Double headed solenoid valves have memory kinetic energy;
4. Equipped with a manual device for easy installation and debugging;
5. Can be integrated with the base valve group to save installation space.

Online

Download
Consult
+86-158-8818-5363
Introduction

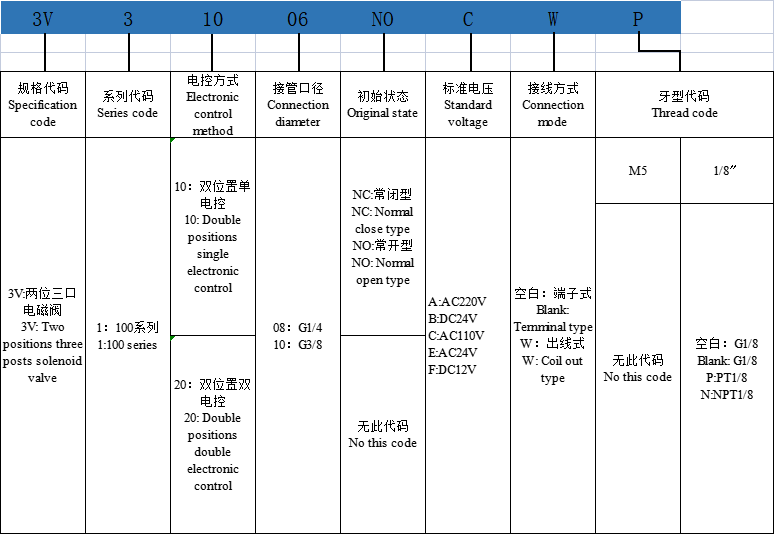

Order Code
Parameter

Product features:

1. Internal pilot operated structure;

2. Sliding column structure, good sealing performance, and sensitive response;

3. Double headed solenoid valves have memory kinetic energy;

4. Equipped with a manual device for easy installation and debugging;

5. Can be integrated with the base valve group to save installation space.



Model3V310-083V320-083V310-103V320-10
Working mediumAir (filtered by a filter screen over 40μm)
Action mode Internal pilot operated
Connection pipe diameterAir inflow = Air outflow = Air exhaust =G1/4Air inflow = Air outflow = G3/8 Air exhaust =G1/4
Effective sectional area25mm²（CV=01.4）30mm²（CV=1.68）
Position numberTwo positions with two ports
Working pressure range0.15~0.8MPa
Ensure pressure resistance 1.2MPa
Working temperature -10~70℃
Working voltage range±10%
Protection levelIP65
InsulativityF Grade
Maximum action frequencyFive times/sec
Excitation timeLess than 0.05 sec
